LS Tractor MT3 Series

This tractor can come in 42 (MT342), 47 (MT347), 52 (MT352), and 57 (MT357) horsepower with either gear or hydrostatic transmissions, and/or open platform or cab.

Categories: , Tag:

Description

The MT3 series is the largest of the premium compact tractors from LS Tractor. This tractor comes with an LS 3-cylinder turbocharged diesel engine that puts out either 42, 47, 52, or 57 horsepower. This tractor comes with three different transmissions.
Transmission Types:

  1. The first option is a manual 16 forward x 16 reverse fully synchronized shuttle shift transmission.
    • LS has also has recently developed a power clutch for the MT352 and the MT357 models. The power clutch tractors have a button on the forward/reverse shifter, and on the main shifter, that when depressed allows the operator to shift the tractor without stepping on the clutch.
  2. The second option is the ROPS (open station) tractors can come with a three-range hydrostatic transmission.
  3. The third option is the cab models come with an all-new Servo HST with Pedal Link transmission.

This series tractor can come in either a ROPS (open station) or a cab version. The cab models have heat and AC!

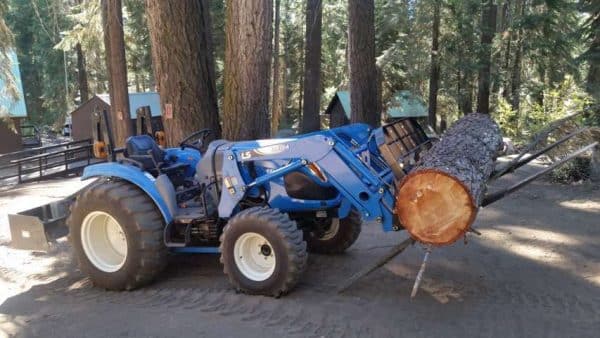

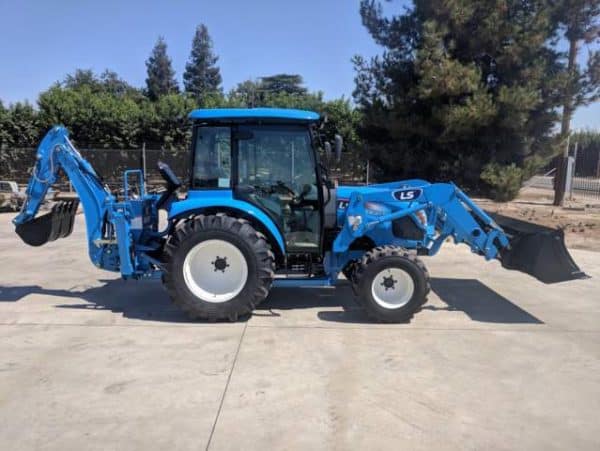

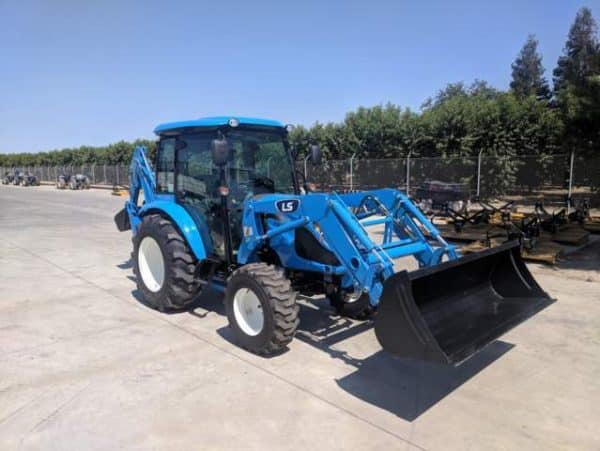

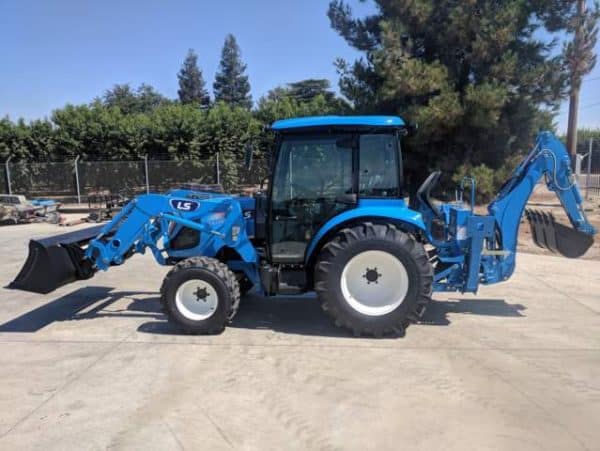

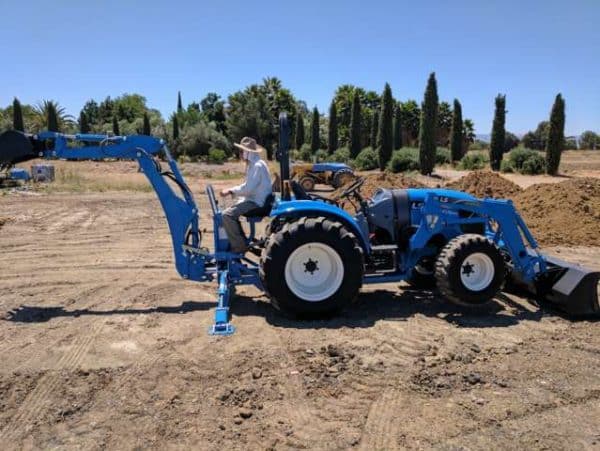

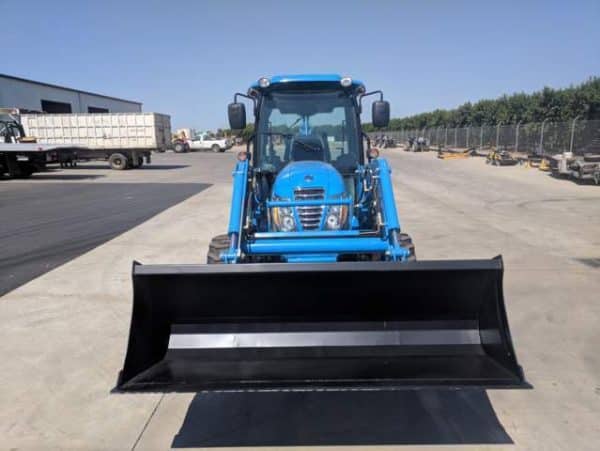

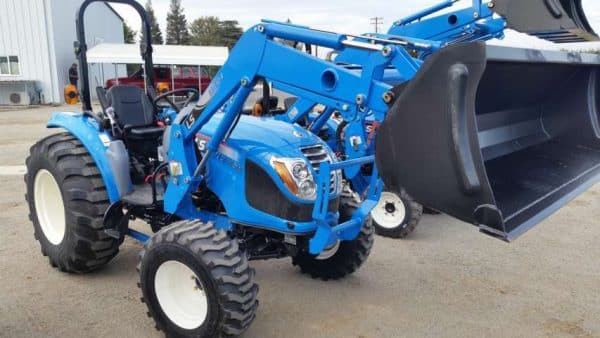

The tractor comes with a front loader fitted with a 72” bucket. Other attachment, such as backhoes, box blades, mowers, pallet forks, etc, are also available for this tractor.

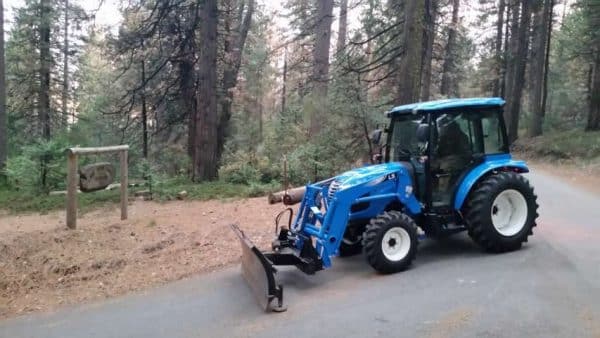

This tractor is great for homeowners who have a decent amount of acreage or people who have projects that need a larger tractor. This tractor is also great for snow removal since the cab models come with a heater!

The MT3 series tractor is the premium version of MT3E Series. Some of the main differences are:

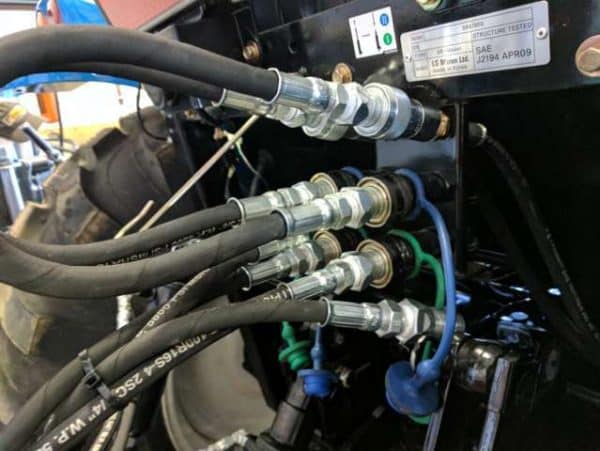

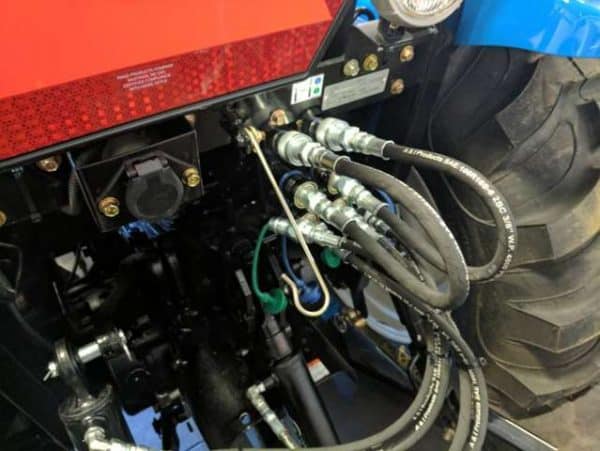

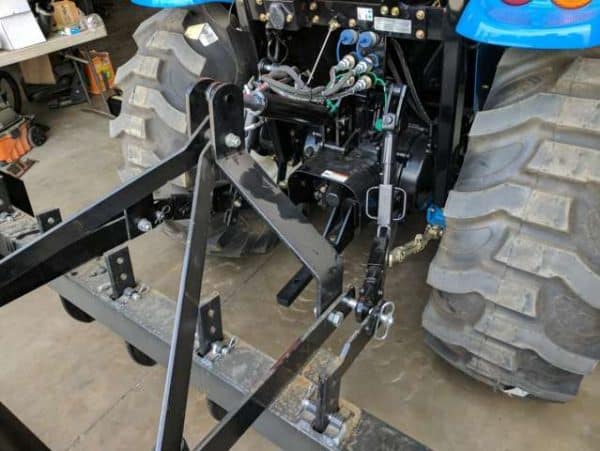

  • MT3 comes with hydraulic remotes installed from the factory (two pairs on the MT342 and MT347 models, and three pairs on the MT52 and the MT357 models). Remotes can be added to the MT3E by the dealer.
  • The MT3 has a beefier frame than the MT3E, so it weighs a bit more, and has more lifting capacity than the MT3E.
  • The MT3 fuel tank is mounted under the left floorboard. The fuel tank on the MT3E is mounted behind the seat.
  • The MT3 also has a more comfortable seat than the MT3E.
  • The MT3 also has a more comfortable seat than the MT3E.

Download Brochure

MT342, MT342H, MT342C, MT342HC Features

  • Fuel tank (ROPS/Cab), Gallons – 10.6/12.4
  • 3-Point Lift Capacity – 2,755 lbs
  • Loader Lift Capacity – 2,680 lbs
  • Engine HP – 42
  • PTO HP – 33.6 (HST) – 35.7 (gear)
  • Transmission Options:- Fully Synchronized 16 forward x 16 reverse synchro shuttle, 3-Range HST (ROPS Models), or 3-Range Servo HST with Pedal Link (Cab Models)

MT347, MT347H, MT347C, MT347HC Features

  • Fuel tank (ROPS/Cab), Gallons – 10.6/12.4
  • 3-Point Lift Capacity – 2,755 lbs
  • Loader Lift Capacity – 2,680 lbs
  • Engine HP – 47
  • PTO HP – 37.6 (HST) – 39.9 (gear)
  • Transmission Options:- Fully Synchronized 16 forward x 16 reverse synchro shuttle, 3-Range HST (ROPS Models), or 3-Range Servo HST with Pedal Link (Cab Models)

MT352PC, MT352H, MT352CPC, MT352HC Features

  • Fuel tank (ROPS/Cab), Gallons – 10.6/12.4
  • 3-Point Lift Capacity – 2,755 lbs
  • Loader Lift Capacity – 2,680 lbs
  • Engine HP – 52
  • PTO HP – 41.6 (HST) – 44.2 (gear)
  • Transmission Options:- Power Clutch Fully Synchronized 16 forward x 16 reverse synchro shuttle, 3-Range HST (ROPS Models), or 3-Range Servo HST with Pedal Link (Cab Models)

MT357PC, MT357H, MT357CPC, MT357HC Features

  • Fuel tank (ROPS/Cab), Gallons – 10.6/12.4
  • 3-Point Lift Capacity – 2,755 lbs
  • Loader Lift Capacity – 2,680 lbs
  • Engine HP – 57
  • PTO HP – 45.6 (HST) – 48.4 (gear)
  • Transmission Options:- Power Clutch Fully Synchronized 16 forward x 16 reverse synchro shuttle, 3-Range HST (ROPS Models), or 3-Range Servo HST with Pedal Link (Cab Models)

Additional information

Horsepower

40-45, 50-55

Fuel Tank Capacity

10 Gallon

Loader Capacity

2,500-3,000 lbs

PTO Horsepower

30-35, 45-50
